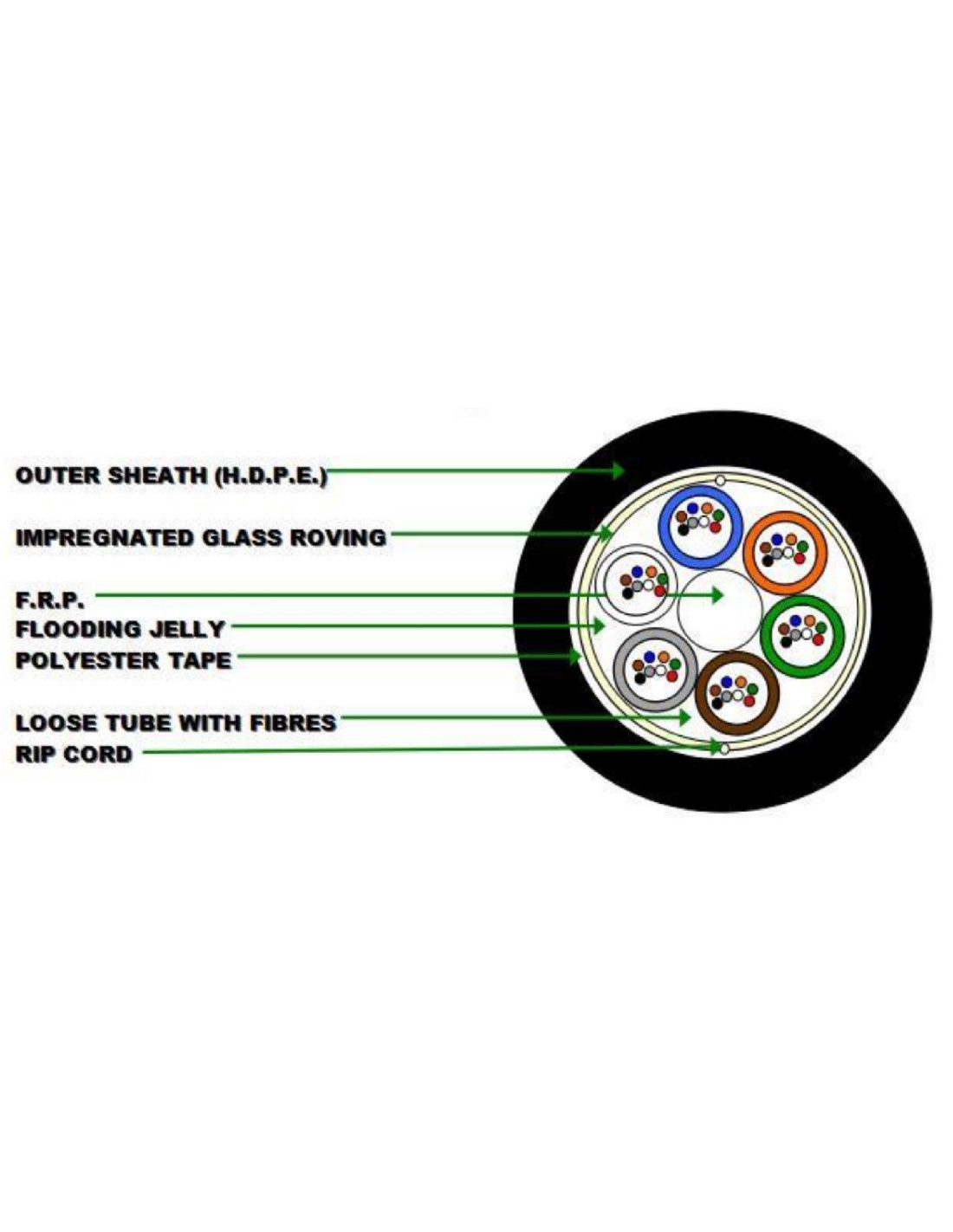

Cablu Fibra Optica FTYS-48F

Fiber count 48/G652D

Loose Tube OD(mm): 2.1 0.1

Material： PBT

Max fiber count/tube 8

No. of tubes 6

No. of fillers 0

FRP/Coating（mm） 2.2

Water Blocking Material Filling Compound

Strength Member FRP & Glass Yarn

Sequence of Tube Blue, Orange, Green, Brown, Slate, White Color of Fiber Blue, Orange, Green, Brown, Slate, White,Red, Black Sheath Thickness: Non. 1.6mm Material： HDPE OD of cable (mm) 10.3 0.2

Net weight ( kg/km) 85

Max Tensile Loading (N) 3250

Attenuation vs. Bending (60mm x100turns) dB (30mm radius，100ring )≤ 0.1 @ 1625nm (10mm radius，1ring)≤ 1.5 @ 1625nm

Mode Field Diameter m 9.2 0.4 at 1310nm 9.2 0.4 at 1310nm

Core-Clad Concentricity m ≤ 0.5 ≤ 0.5

 Long-tensile load：2500N

Short-tensile load：3250N

Cable length：≥50m
